How a BOPP Tape Slitter Rewinder Works
A BOPP slitter rewinder unwinds the coated jumbo roll, cuts it lengthwise into narrow webs with its slitting knives, and rewinds each web onto a core to form log rolls. Accurate tension control matters throughout, because uneven tension produces telescoping, loose edges and wasted tape.
Both Goldmann machines use individual pneumatic clutches for tension control and rewind on air expansion or differential shafts, with duplex rewinding. Multiple cutting systems are available depending on the film and the cut quality you need.

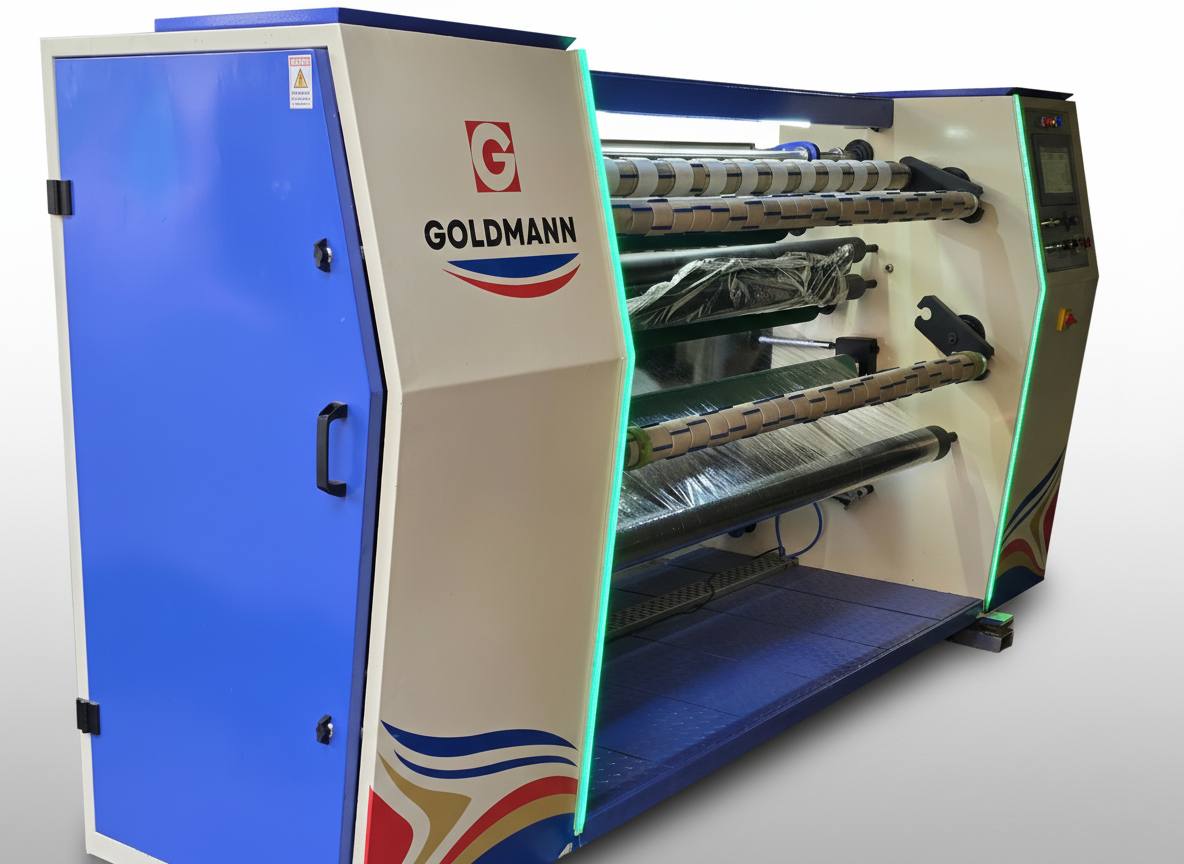

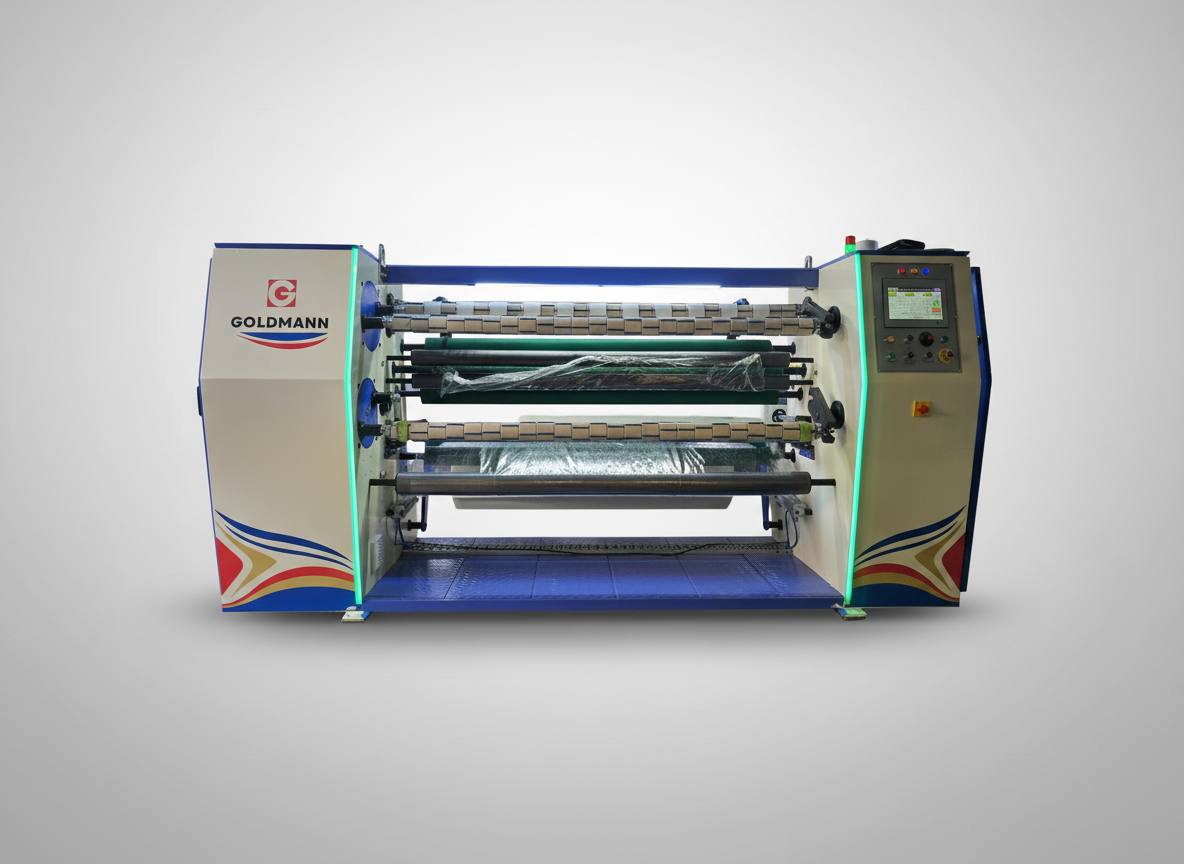

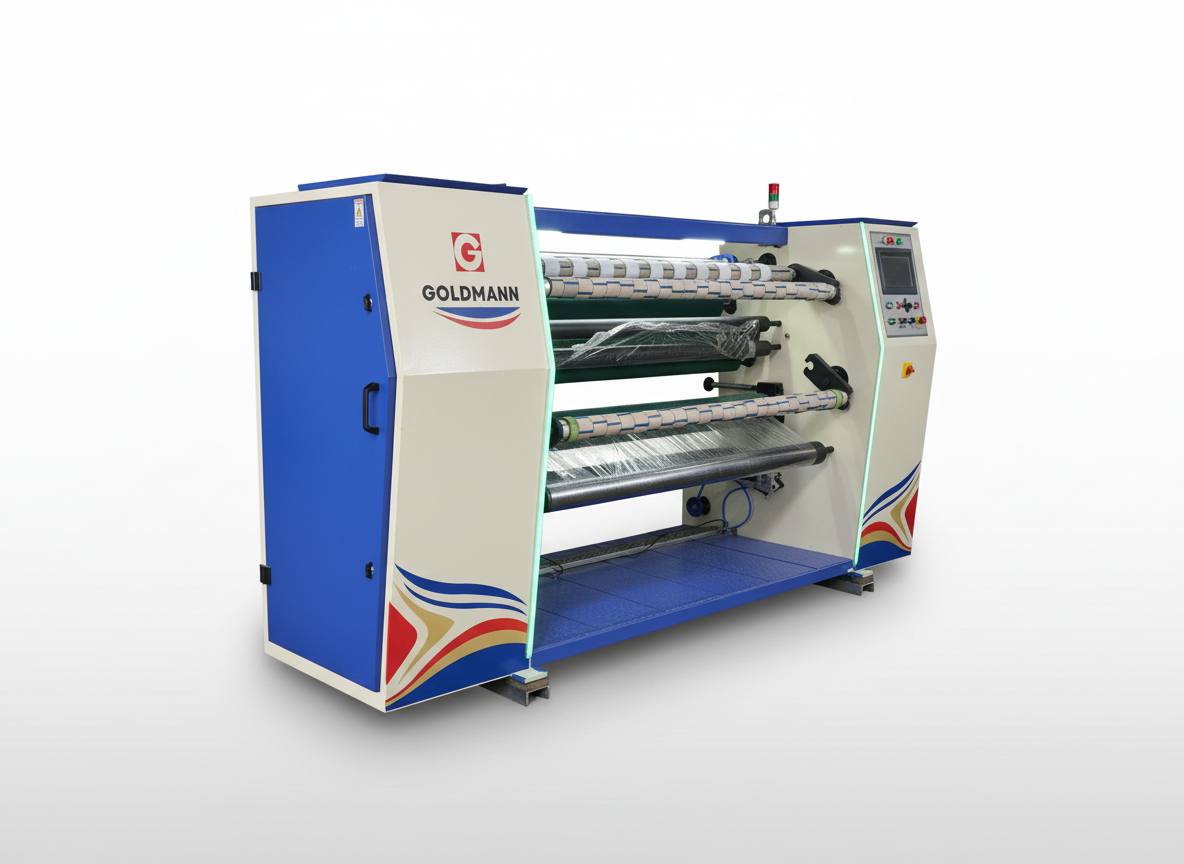

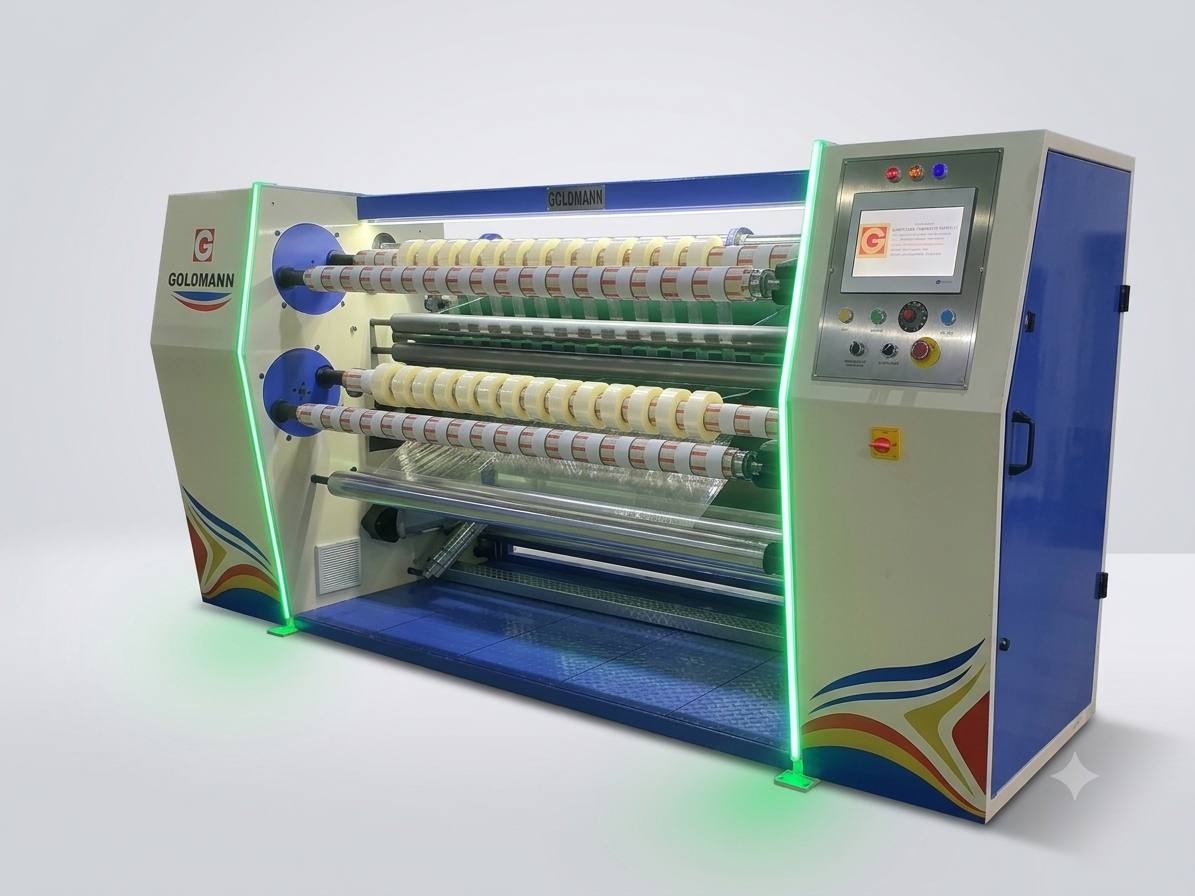

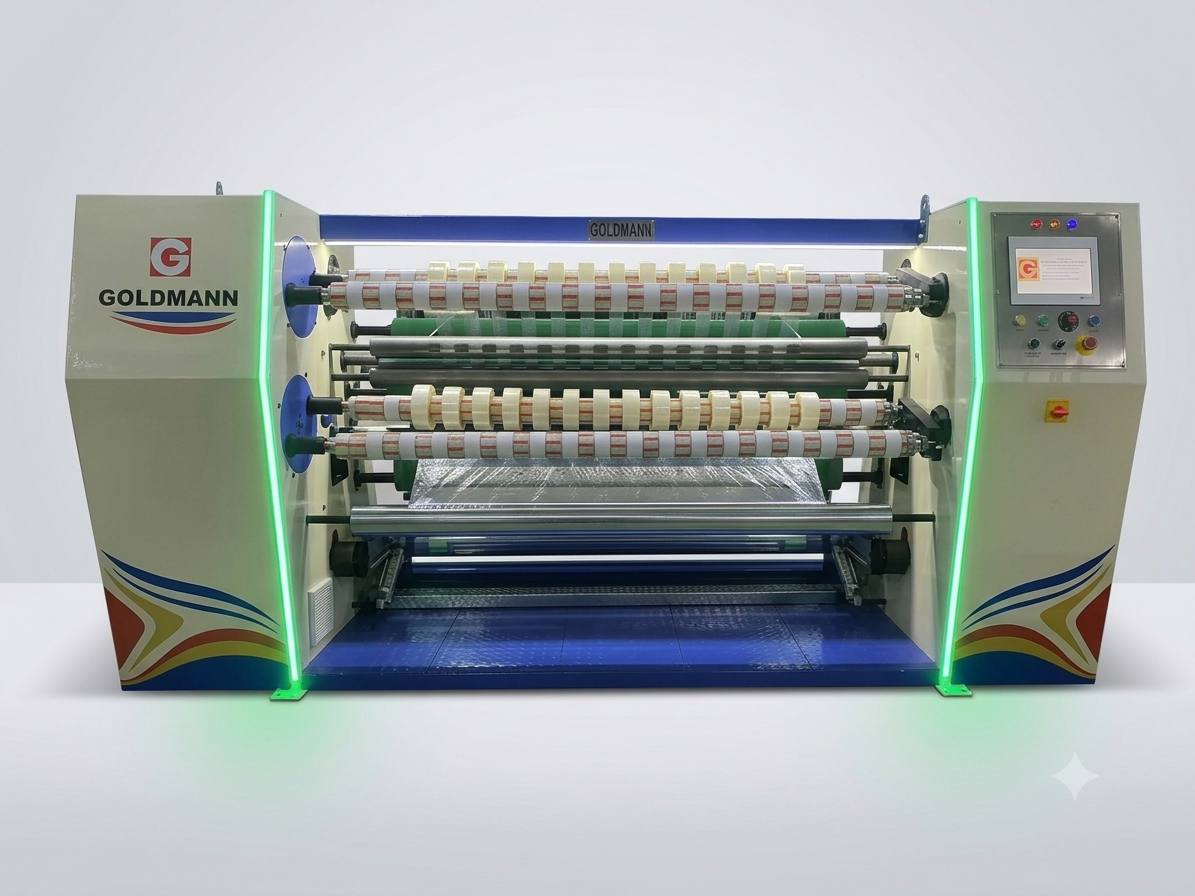

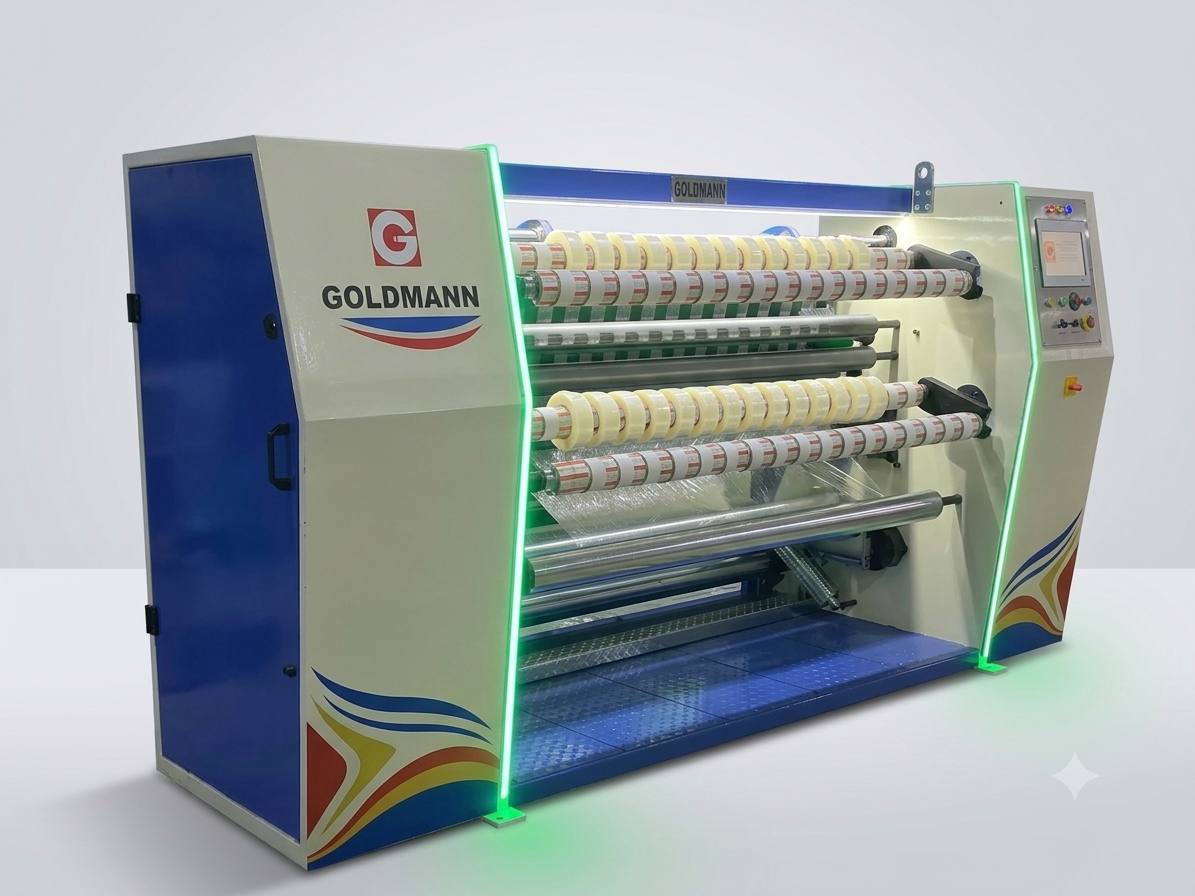

GA-SRT: High-Output BOPP Slitting Rewinding Machine
The GA-SRT runs at 250 metres per minute and is designed for minimal changeover and idle time. One shaft stays stationary while the other rewinds, so changeover happens while the machine keeps running. The turret function handles rolls up to 1000 metres or 250 mm diameter, and spiral trim winding collects edge trim neatly.
Goldmann builds GA-SRT machines that can produce easy-tear tape and glass-clear BOPP rolls, and the modular design makes customisation straightforward.
GA-T3: Reliable and Economic BOPP Slitting Machine
The GA-T3 runs at 200 metres per minute with a maximum rewind diameter of 160 mm. It carries the same working width range and the same pneumatic-clutch tension control as the GA-SRT, and suits manufacturers who need dependable BOPP slitting without the turret function.
Choosing Between the GA-SRT and the GA-T3
If your plant runs at high volume and every minute of idle time costs output, the GA-SRT's running changeover and larger roll capacity pay back quickly. If your volumes are moderate or you are adding slitting capacity to an existing line, the GA-T3 delivers the core slitting performance at a lower investment. Our guide to choosing a BOPP tape slitter rewinder explains the decision in more detail, and for non-standard requirements see our special purpose slitter rewinders.
Price of a BOPP Tape Slitting Machine
Slitting machine pricing depends on working width, speed, cutting system, rewind configuration and automation. Contact Goldmann with your film width, tape sizes and target output for a specification and quotation.
GA-SRT and GA-T3 Compared
| GA-SRT | GA-T3 | |
|---|---|---|
| Working width | 1000 to 2000 mm | 1000 to 2000 mm |
| Machine speed | 250 MPM | 200 MPM |
| Slitting width | 12 mm upwards | 12 mm upwards |
| Max rewind diameter | 250 mm (1000 m roll) | 160 mm |
| Turret function | Yes | - |
| Tension control | Individual pneumatic clutches | Individual pneumatic clutches |
| Rewinding | Duplex, air expansion / differential shafts | Duplex, air expansion / differential shafts |
- Working Width: 1000mm to 2000mm
- Speed: 250 MPM
- One shaft stationary while rewinding on other - changeover while running
- Multiple cutting systems as per requirement
- Turret function with rolls up to 1000 mts or 250mm dia.
- Spiral trim winding
- Slitting Width: 12mm upwards
- Max. Rewind Diameter: 250mm
- Tension Control: Individual Pneumatic Clutches (Standard)
- Duplex rewinding on Air Expansion or Differential Shafts
- Working Width: 1000mm to 2000mm
- Speed: 200 MPM
- Multiple cutting systems as per requirement
- Slitting Width: 12mm upwards
- Max. Rewind Diameter: 160mm
- Tension Control: Individual Pneumatic Clutches
- Duplex winding on Air Expansion or Differential Shafts
